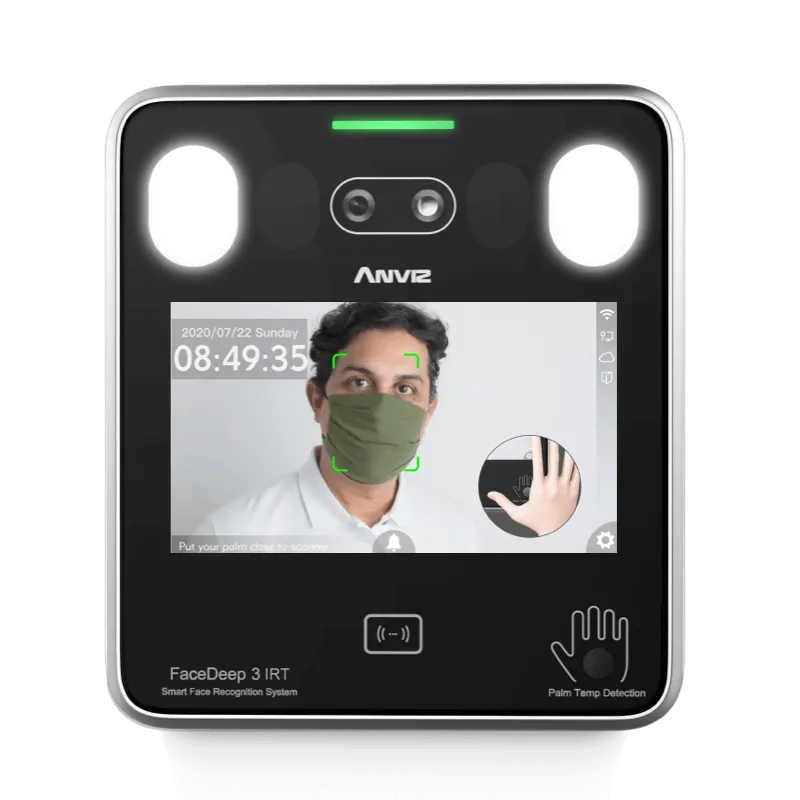

ANVIZ FACEDEEP 3 IRT
Smart Face Recognition Terminal with Body Temperature Detection
FaceDeep 3 series are the new AI-based face recognition terminal equipped with a dual-core based Linux based CPU and the latest BioNANO® deep learning algorithm. It rapidly recognize users within 2M(6.5 ft) in less than 0.3 seconds and customizes alerts and a variety of reporting for no-mask wearing.
Special Features.
- Scan Body Temperature on Palm or Wrist within 1 to 2 CM.
- Records time attendance and Temperature at the same time.
- Mask detection and alerts when a person is not wearing a face mask.
- Denies access for someone with fever.
- Denies access for someone not wearing Mask.
Specifications
Anviz Facedeep 3 IRT has three models to choose from, please see the chart below for comparison. Chat a sales representative if you need assistance.
| Model | FaceDeep 3 IRT | FaceDeep 3 Pro IRT | FaceDeep 3 4G IRT | |
| General | Identification Mode | Face, Card, ID Password | ||
| Face Recognition Distance | 0.5 ~ 1.5m ( 19.69 ~ 59.06” ) Best Precision Distance, and Up to 2 Meter as Maximum. | |||
| Face Recognition Speed | <0.3 S | |||
| RFID Technology | 125KHz EM | 13.56 MHz Mifare | 13.56 MHz Mifare | |
| IRT(Palm Temperature Detection) | Detection Distance | 10~20mm( 0.39~0.79” ) | ||
| Temperature Range | 23°C~46°C ( 73°F~114°F ) | |||
| Temperature Accuracy* | ±0.3°C( 0.54°F ) | |||
| Capacity | Max Users | 6,000 | 10,000 | 10,000 |
| Max Cards | 6,000 | 10,000 | 10,000 | |
| Max Logs | 100,000 | |||
| Function | Time Attendance Mode | 8 | ||
| Group, Time Zone | 16 Access Groups, 32 Time Zone | |||
| WebServer | √ | |||
| Record Auto Inquiry | √ | |||
| Voice Prompt | √ | |||
| Clock Bell | √ | |||
| Multiple Language | √ | |||
| Hardware | CPU | Dual 1.0 GHz | ||
| Camera | Dual Camera ( VIS & NIR ) | |||
| Scanning Area | Horrizontal：±20° Vertical：±20° | |||
| Display | 5" TFT Touch Screen Resolution 640*480 | |||
| Smart LED | Support | |||
| Dimensions(W x H x D) | 14.6*16.5*3.4 cm 5.75*6.50*1.34” | |||
| Working Temperature | -5℃~60℃ 23℉~160℉ | |||
| Humidity | 0% to 95% | |||
| Power Input | DC 12V 2A | |||
| Interface | TCP/IP | √ | ||
| RS485 | √ | |||
| RS485 | √ | |||
| Wi-Fi | √ | - | - | |
| Wi-Fi Bluetooth | - | √ | - | |
| 4G | - | - | √ | |
| Relay | 1 Relay Out | |||
| Tamper Alarm | √ | |||
| Wiegand | 1 In / 1 Out | |||
| Door Contact | √ | |||
| Software Compatibility | CrossChex Standard | √ | ||
| CrossChex Cloud | √ | |||
